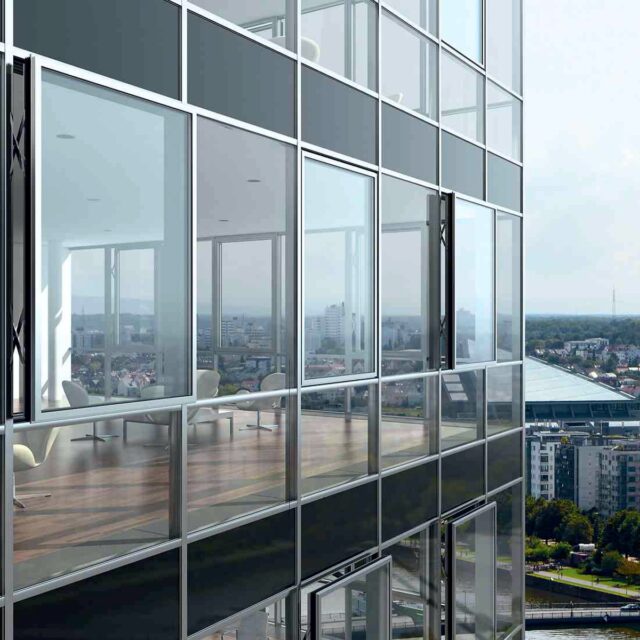

AWS 114 PAF opening facade window

AWS 114 PAF opening facade window

The Schüco Aluminium Window System 114 insert unit offers a diverse range of design options in all Schüco façade systems, in the structural and mullion-transom versions. The appearance of this innovative system with large vent formats can be integrated seamlessly into different façade geometries.
The comprehensive glazing range enables custom-built solutions for requisite safety and thermal insulation, including triple glazing and glass thicknesses of up to 52 mm.

Advantages:

• Opening types: projected top-hung (vent weights of up to 250 kg) and parallel-opening window (vent weights of up to 200 kg).
• Uf values in the .SI (Super Insulation) version: of up to 1.4 W/(m²K).
• Seamless visual integration without compromising the uniform façade geometry.
• Optional operation with concealed Schüco TipTronic motor drive.
• Energy-absorbing limiting stays allow safety barrier loading.
• RC 2 burglar resistance.
• 2 types of glazing: stepped insulating glazing and standard insulating glazing .
• Large vent measurements and weights for manual as well as Schüco TipTronic fittings can be designed for a high level of transparency.
• System-optimised with low operating forces.
